Large Space 4-Seat Electric Tuk Tuk with 150km Driving Range and 60V Lithium Battery

Name: Large Space 4-Seat Electric Tuk Tuk with 150km Driving Range and 60V Lithium Battery
Brand: Xuzhou Lingmao Yicheng Technology Co., Ltd
SKU: XHM
Availability: InStock

Brand Name:	LM
Model Number:	XHM
MOQ:	25
Price:	Contact Customer Service
Payment Terms:	T/T
Supply Ability:	100 vehicles per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001

Overall Dimensions (L*W*H) Mm:

2900×1250×1700

Lamps:

Headlights + Turn Signals + Daytime Running Lights + Reverse Lights

Tire Size:

Front: 4.00-12; Rear: 4.00-12

Driving Range Km:

150km

Standard Voltage V:

60V

Dashboard + Instrument:

Customized

Packaging Details:

PE Stretch Film + Wooden Case

Highlight:

large space electric tuk tuk

4 seat electric tricycle

large space electric tricycle

Product Description

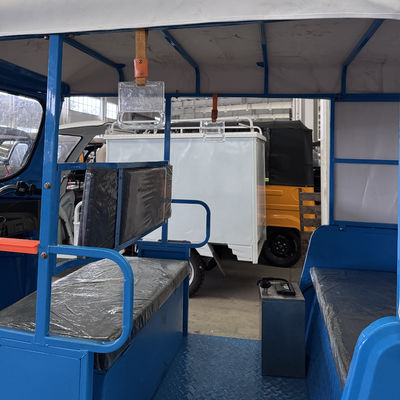

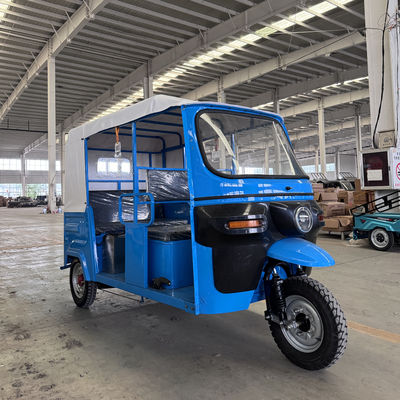

Large Space Electric Tuk Tuk - 4 Seat Electric Tricycle

Spacious passenger vehicle featuring a 4-seat electric tricycle design with optional lithium or lead-acid battery configurations.

Vehicle Specifications

Technical Parameter	Specification
Overall Dimensions (L×W×H)	2900×1250×1700 mm
Load Capacity	580 kg
Curb Weight	320 kg (excluding battery)
Wheelbase	2240 mm
Track Width	1100 mm
Passenger Capacity	7 Persons
Speed	Low Speed ≤15 km/h, High Speed ≤50 km/h
Driving Range	150 km
Battery Capacity	Lithium Battery 60V 140Ah
Standard Voltage	60V
Travel Motor Power	DC Brushless Motor 1500W

Main Configuration

Lamps: Headlights + Turn Signals + Daytime Running Lights + Reverse Lights
Dashboard + Instrument: Customized
Wiper Motor: Pure Copper Motor
Tire Size: Front: 4.00-12; Rear: 4.00-12
Wheel Hubs: Front and Rear Iron Hubs
Electronic Control System: 24-Tube Intelligent Dual-Mode Controller
Control & Travel Mode: Throttle Grip Type
Driving Mode: Handlebar Type
Braking Mode: Mechanical Drum Brake
Wire Harness: High-Low Voltage Dual Circuit (High Voltage 10mm², Low Voltage 1mm²)
Front Shock Absorber: Customized Outer-Spring Front Shock Absorber
Drive Axle: 160 Drum Brake Integrated Rear Axle
Rear Suspension: Reinforced Steel Plate Spring
Canopy Fabric: Composite Leather

Frame & Construction

Frame Material: Main beam uses 40×80×2.5mm rectangular tube with cathodic electrophoresis for corrosion and rust prevention
Carriage Structure: Detachable components for easy and convenient assembly
Quantity in 40ft Container: 26 units (loose loading, half container)

Pricing Information

Naked Car Price 6100 Yuan

Configuration Upgrade +960 Yuan

(High-power rear axle, 30-tube controller, 3000W AC motor)

Lithium Battery 60V140Ah 5100 Yuan

30A Charger 550 Yuan

Charging Time: 4-5 Hours

40A Charger 750 Yuan

Charging Time: 3-4 Hours

60A Charger 1150 Yuan

Charging Time: 2-3 Hours

Note: All prices are excluding tax and do not include decal fees, packaging fees, container loading fees, and freight.
