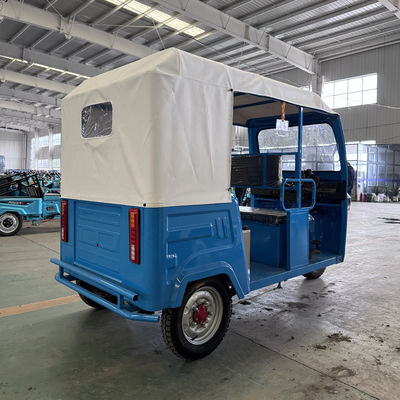

Heavy Load Passenger Electric Tricycle with 800kg Max Load 43 Hydraulic Shock Absorber and 48V/60V 1000W Motor

Brand Name:	LM
MOQ:	25
Price:	Contact Customer Service
Payment Terms:	T/T
Supply Ability:	100 vehicles per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001

Motor:

48V/60V 1000W

Controller:

24 Tubes

Overall Dimension:

285010001800 Mm

Max Range:

80 KM

Brake Type:

Drum Brake

Max Speed:

35-40Km/h

Packaging Details:

PE Stretch Film + Wooden Case

Highlight:

800kg Max Load Electric Tuk Tuk

43 Hydraulic Shock Absorber Passenger Electric Tricycle

48V/60V 1000W Motor Commercial Electric Tricycle

Product Description

Commercial Passenger Electric Tricycle | Spacious 285010001800mm Body & Safe Stable Drum Brake System

2. Core Selling Paragraph

This passenger electric tricycle adopts a 48V/60V 1000W motor matched with 24-tube controller to deliver strong climbing power for full-load passengers, and is equipped with 43 hydraulic shock absorber with outer spring and reliable drum brake system to bring smooth riding and stable braking safety. It supports 5 passengers with 800kg max load, 35-40Km/h top speed and 80km max range, with iron sturdy frame, standard LED headlight, luggage rack, spare tire cover and complete functional accessories, customizable color for rural & urban passenger transport business.

3. Product Specifications

Item	Specification
Motor	48V/60V 1000W
Controller	24 tubes
Overall Dimension	285010001800 mm
Max Range	80 KM
Brake Type	Drum brake
Max Speed	35-40Km/h
Max Loading Weight	800kg
Vehicle Weight	230kg
Tire Size	375-12
Shock Absorber	43 hydraulic shock absorber with outer spring
Headlight	LED headlight
Color	Customizable
Passenger Capacity	5 persons
Application	Passenger transport
Main Frame Material	Iron
Luggage Rack	Included
Spare Tire Cover	Included
Battery	Not included
Loading Quantity	55 units per 40ft container, 22 units per 20ft container, CKD
Standard Accessories	Raincoat, pedal leather, wiper motor, LED dashboard, anti-theft device, horn, fan, radio, full set screws etc.

4. Product Introduction

This 5-seat commercial passenger electric tricycle is specially designed for short-distance passenger transport between towns and villages. The whole vehicle is built with an iron main frame, solid and durable with a maximum load of 800kg, capable of carrying 5 passengers at one time to meet daily passenger transport demands.

Power system is equipped with 48V/60V 1000W high-power motor and 24-tube heavy-duty controller, providing abundant starting torque for smooth driving on rural slopes and muddy roads. It is fitted with 43 hydraulic shock absorbers with outer springs, dual buffering structure to filter road bumps and improve riding comfort during long-hour operation. Drum brake system ensures sensitive braking response and stable stopping under heavy load for better driving safety.

Q1: What motor and controller is this passenger tricycle equipped with?

A: It is fitted with 48V/60V 1000W motor and 24-tube controller.

Q2: What’s the maximum load capacity and passenger capacity?

A: The maximum load is 800kg, and it can carry up to 5 passengers.

Q3: About speed and range, what are the official parameters?

A: The max speed is 35-40Km/h, and the maximum driving range is 80 kilometers.

Q4: What shock absorption and brake system does it use?

A: It adopts 43 hydraulic shock absorber with outer spring and drum brake system.

Q5: What accessories are included as standard?

A: It comes with raincoat, pedal leather, wiper motor, LED dashboard, anti-theft device, horn, fan, radio, full set screws and other spare parts.
