| Brand Name: | LM |
| MOQ: | 25 |
| Price: | Contact Customer Service |
| Payment Terms: | T/T |
| Supply Ability: | 100 vehicles per month |

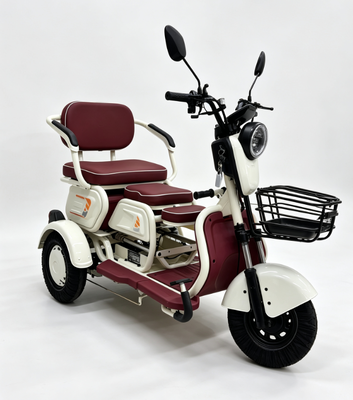

This leisure electric tricycle adopts steel body for solid structure and long service life. The controller is 12-tube square wave as standard, and 15-tube version is optional. Motors have multiple options including 500W25H48/60, 650W30H and 800W35H to meet different power demands. It is equipped with 300-8 vacuum rear tire for stable riding and reduce tire burst risk. The default battery is 48/20 lead-acid storage battery, and 60/20,72/20 versions are available, delivering 30-40km driving range, perfect for family grocery shopping and kids pickup. It comes with front seat, rear seat and baby seat for multi-person riding. 12cm minimum ground clearance allows it to pass speed bumps and country roads easily. The vehicle weighs 82KG with dimension of 15374109cm, compact and simple to operate and park.
| Item | Specification |
|---|---|
| Body Material | Steel |
| Controller (Optional) | 12-Tube Square Wave (15-Tube Optional) |
| Rear Tire Size | 300-8 Vacuum Tire |
| Front Seat Height From Ground (cm) | 68 |
| Rear Seat Height From Ground (cm) | 70 |
| Front Footboard Gap (cm) | 18*59 |
| Rear Footboard Gap (cm) | * |
| Carton Weight (KG) | 8.1 |
| Battery (Optional) | 48/20 Lead-acid Storage Battery (60/20;72/20 Optional) |
| LWH (cm) | 15374109 |
| Minimum Ground Clearance (cm) | 12 |
| Motor Type (Optional) | 500W25H48/60 (650W30H;800W35H Optional) |
| Front Seat Size (cm) | 27*25 |
| Rear Seat Size (cm) | 36*55 |
| Baby Seat Size (cm) | 18*18 |
| Vehicle Weight (KG) | 82 |
| Carton Size (cm) | 1307270 |
| Driving Range (km) | 30-40 |
Q1: What is the driving range of this leisure electric tricycle? A1: The driving range is 30-40 km, affected by load and road condition.
Q2: What optional configurations are available for the controller? A2: Standard 12-tube square wave controller, 15-tube controller is optional.
Q3: How many power versions of the motor can I choose? A3: Basic motor:500W25H48/60, optional 650W30H and 800W35H.
Q4: What battery specifications are available? A4: Standard 48/20 lead-acid storage battery, optional 60/20,72/20 lead-acid storage battery.
Q5: What is the specification of the rear tire? A5: Rear tire size:300-8 vacuum tire.
