1.25m Single Row Electric Passenger Tricycle 4 Seater With 150km Range

Brand Name:	LM
Model Number:	tuktuk
MOQ:	one
Price:	Contact Customer Service
Payment Terms:	T/T
Supply Ability:	100 vehicles per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001

Overall Dimensions (Length×Width×Height) Mm:

2700×1250×1700

Load Capacity Kg:

280

Vehicle Mass Kg (Excluding Battery):

252（Excluding Battery）

Passenger Capacity:

4 Persons

Speed Km/h:

Low Speed ≤15, High Speed ≤50

Driving Range Km:

150km

Packaging Details:

PE Stretch Film + Wooden Case

Highlight:

single row electric passenger tricycle

electric passenger tricycle 4 seater

1.25m passenger electric tricycle

Product Description

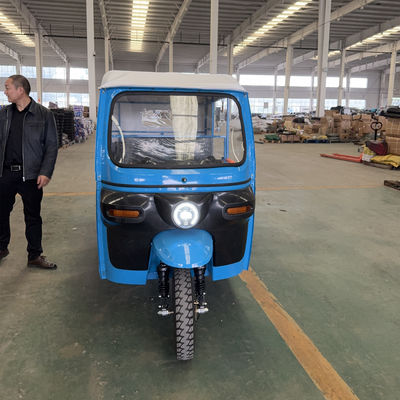

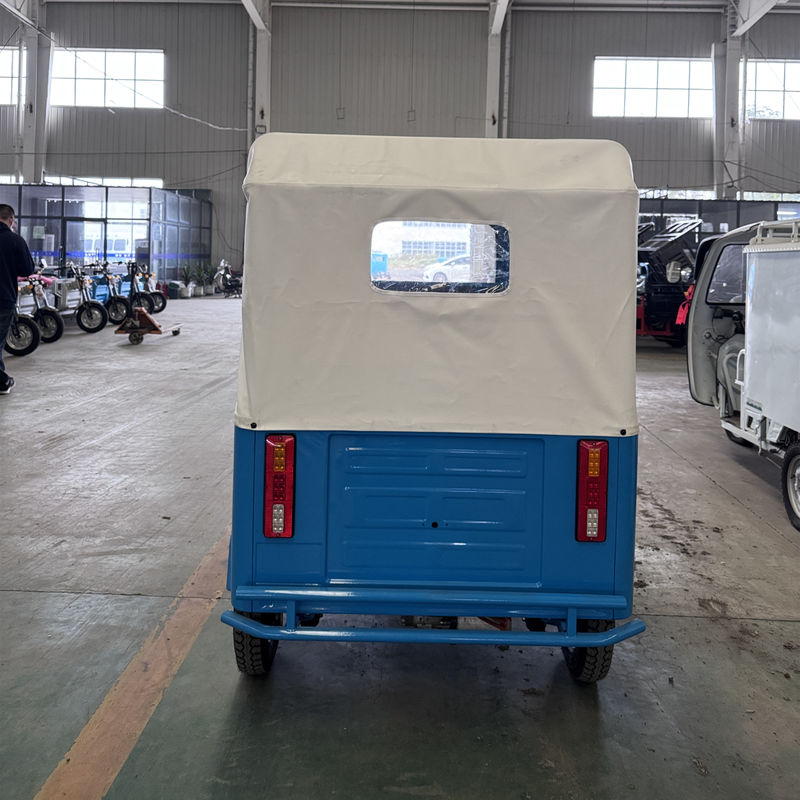

1.25m Single-Row Passenger Tricycle, 4-Seater with 150km Range for Short-Distance Transport

Introduction to 1.25m Single-Row Passenger Tricycle

The 1.25m single-row passenger tricycle is a practical vehicle specially designed for short-distance passenger transport scenarios. With its compact body design and reliable performance, it is suitable for various short-distance passenger needs such as urban alleys and scenic spot tours.

In terms of technical parameters, the overall dimensions of the vehicle are 2700×1250×1700mm, and the 1.25m vehicle width enables it to have excellent passability in narrow roads. The load capacity reaches 280kg, and the overall vehicle mass (excluding the battery) is 252kg. The wheelbase is 1940mm and the track width is 1100mm. The structural design takes into account both stability and flexibility. It can carry 4 passengers, which can meet the travel needs of small groups. The speed is divided into two gears: low speed (≤15km/h) and high speed (≤50km/h), which are suitable for speed requirements of different road conditions. The cruising range can reach 150km. Equipped with a 60V140AH lithium battery and a 1500W DC brushless motor, the power and cruising performance are balanced, which can effectively support daily operations.

In terms of appearance and practicality, the vehicle adopts customizable colors and is designed with a sunshade roof, which not only ensures recognition but also provides basic sunshade protection for passengers. The single-row seat layout makes rational use of space, making it suitable for scenarios such as scenic spot transfer and community commuting. It is a short-distance passenger solution that combines economy and practicality.

1.25m Single Row Electric Passenger Tricycle 4 Seater With 150km Range 0

Technical Parameters	Overall Dimensions (Length×Width×Height) mm	2700×1250×1700
	Load Capacity kg	280
	Vehicle Mass kg (Excluding Battery)	252(Excluding Battery)
	Wheelbase mm	1940
	Track Width mm	1100
	Passenger Capacity	4 Persons
	Speed km/h	Low Speed ≤15, High Speed ≤50
	Driving Range km	150km
	Battery Capacity, Quantity	Lithium Battery 60V140AH
	Standard Voltage V	60V
	Travel Motor Power W	DC Brushless Motor 1500W
Main Configuration	Lamps	Headlights + Turn Signals + Running Lights + Reverse Lights
	Console + Instrument	Specialized
	Wiper Motor	Pure Copper Motor
	Tire Size	Front Tire 3.75-12; Rear Tire 3.75-12
	Wheel Hubs	Front and Rear Iron Hubs
	Electronic Control System	Adopts 24-Tube Intelligent Dual-Mode Controller
	Walking Control Mode	Throttle Type
	Driving Mode	Handlebar Type
	Braking Mode	Mechanical Drum Brake
	Wiring Harness Layout	High and Low Voltage Dual Circuits: High Temperature and High Voltage 10 Square, Low Voltage 1 Square
	Front Shock Absorber	Special External Yellow Front Shock Absorber
	Drive Axle	160 Drum Brake Integrated Rear Axle
	Rear Suspension	Adopts Heavy-Duty Leaf Spring
	Canopy Cloth	Composite Leather
Others	Frame Material	The main beam uses 40802.5mm rectangular tubes and undergoes cathodic electrophoresis for anti-corrosion and anti-rust treatment.
	Carriage Structure	Carriage components are detachable and easy to assemble.
	Quantity in 40ft Container	26 units (semi-bulk)
Price	Base Car Price	5900 RMB
	Configuration Upgrade	Replace with high-power rear axle, 30-tube controller, 3000W AC motor with an additional 960 RMB
	Lithium Battery 60V140AH	5100 RMB
	30A Charger	550 RMB	Charging Time: 4-5 Hours
	40A Charger	750 RMB	Charging Time: 3-4 Hours
	60A Charger	1150 RMB	Charging Time: 2-3 Hours
Remarks	The above prices are excluding tax, and do not include sticker fees, packaging fees, container loading fees, and freight.
