| Brand Name: | LM |
| MOQ: | 25 |
| Price: | Contact Customer Service |
| Payment Terms: | T/T |
| Supply Ability: | 100 vehicles per month |

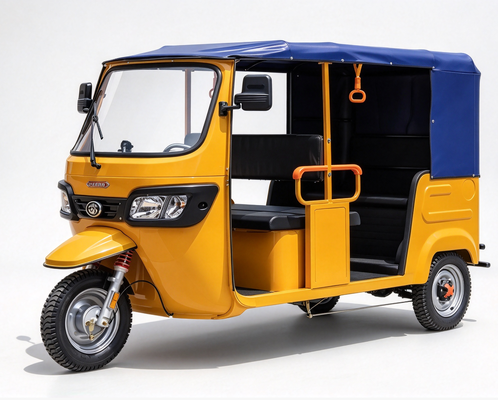

This 1.1m double row passenger electric tricycle is a popular leisure passenger transport vehicle for overseas markets. It adopts double-row seat design with rainproof and sunshade canopy, and can carry up to 5 passengers. Equipped with a 1500W DC brushless motor, it delivers stable and strong power. Matched with 60V140AH large-capacity lithium battery, the driving range reaches 150km. This tricycle supports high and low speed modes: low speed ≤15km/h, high speed ≤50km/h, suitable for short-distance transportation in scenic spots, towns and communities. It has a solid frame with max load capacity of 420kg. The vehicle weight is 280kg excluding battery. Featuring stable structure, simple operation and easy maintenance, it is an ideal choice for multi-person short-distance travel.
| Item | Parameter |
|---|---|
| Overall Dimension(LWH) mm | 2900×1100×1700 |
| Load Capacity kg | 420 |
| Vehicle Weight kg | 280 (Battery Excluded) |
| Wheelbase mm | 2240 |
| Track Width mm | 950 |
| Passenger Capacity | 5 Persons |
| Speed km/h | Low Speed ≤15, High Speed ≤50 |
| Driving Range km | 150km |
| Battery Capacity & Type | Lithium Battery 60V140AH |
| Rated Voltage V | 60V |
| Driving Motor Power w | 1500W DC Brushless Motor |
Q1: How many passengers can this 1.1m double row electric tricycle carry at most? A1: This 1.1m double row passenger electric tricycle can carry 5 persons.
Q2: What is the driving range and what battery does this tricycle adopt? A2: The driving range is 150km. It adopts 60V140AH lithium battery with rated voltage of 60V.
Q3: How many speed modes does the vehicle have and what is the speed range? A3: It has two speed modes. Low speed ≤15km/h, high speed ≤50km/h.
Q4: What is the overall dimension and the vehicle weight without battery? A4: Overall dimension: 2900×1100×1700mm, vehicle weight 280kg (Battery Excluded).
Q5: What is the specification of the driving motor for this tricycle? A5: The driving motor is 1500W DC brushless motor.
